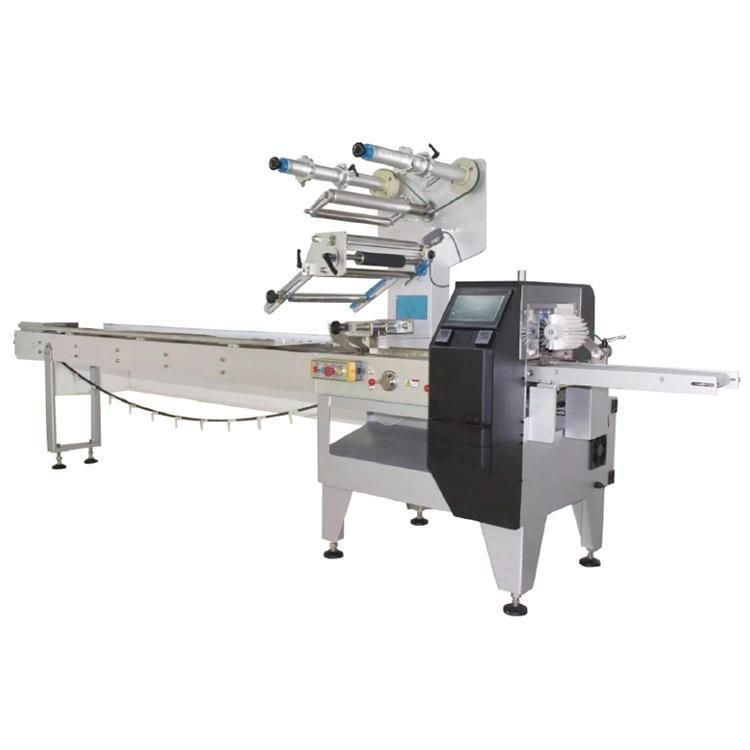

Automatic 5.8KW 220V N95 Mask Packing Machine

Automatic N95 Mask Packing Machine

Description

Disposable mask packaging machine is suitable for packing medical bag masks, packaging disposable masks, medical masks, activated carbon masks, N95 masks, single-piece packaging, multi-piece packaging, the machine's sealing form is the back sealing. Basically, the bag masks we commonly use can be packed with this machine. The machine can be packaged individually, or multiple masks can be stacked together for packaging. The form of the bag is zigzag and easy to tear, which basically conforms to the mask packaging methods commonly used in the market.

Product introduction

The mask packaging machine is a back-end packaging machine, which is specially used for packaging disposable masks, medical masks, and non-woven masks. It is suitable for automatic packaging of single or multi-piece masks, 30-100 bags per minute, high efficiency, The function adjustment and technology upgrade are very convenient. The servo packaging machine uses a servo motor and controller. The equipment has good stability, low noise of the packaging machine, fast packaging speed, higher yield and beautiful appearance.

Technical parameter

The basic configuration models of the model bag mask are as follows

1) Knife seal mechanism: rotary knife seal mechanism, 1320 center distance (two knives), straight grain, knife seat length 180MM, knife seat 4 stripes, knife pattern thickness 17.3.

2) The middle seal mechanism, the width of the support plate is 36MM.

Mid-sealing wheel type: paper drawing wheel vertical pattern, paper drawing wheel width is 10MM, pressing wheel is rice pattern, pressing width is 10MM.

3) Basic paper swing lever mechanism.

4) The tailstock is a standard mid-mounted tailstock with a length of 2.54M; the width of the left and right movable panels is 250MM and the height is 25MM; the height of the left and right movable baffles is 23.5MM; the movable panel is folded inward .

5) The number of chain segments is 16 (200 pitches). The push block is a stainless steel push block with a width of 15MM and an effective height of 25MM. The standard discharge is with a hair brush and a length of 540MM.

6) Touch screen.

7) Packaging speed (package / minute): 30 ~ 100;

Bag size (mm) length 80-200; width 35-160; height 5-50; packaging film width 90-300.

Power supply single phase 220V 50HZ; total power 5.8KW; weight of the whole machine 400KG; overall dimensions 4000 × 930 × 1370mm

Work flow

The working process of the machine: The operator manually stacks single-piece masks or multiple pieces of masks together and puts them into the conveyor belt of the packaging machine. The masks are sent to the packaging machine through the conveyor belt for packaging. The finished product output and other links complete the packaging process, which is easy to operate and multi-purpose for one machine.
