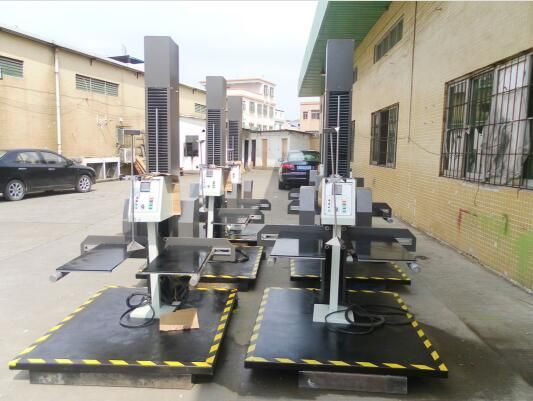

Dual Arm Drop Machine
Dual Arm Drop Machine
Dual Arm Drop Machine

Dual Arm Drop Machine

Product Model : SL-E06
Dual Arm Drop Machine Drop Height(mm):400-1500 Max weight for test sample(kg):60 max dimension for test sample(mm):1400×1000×800 dimension for impact panel(mm):1400×1200 dimension for hold arm mm):700 X 350 horse power :raise a third P, manual adjustable wide dimension for test machine (mm):1400×1200×2200 net weight(kg):500 comply to ISO22488-1972(E)standard
Detailed description

Dual Arm Drop Machine

During the transportation process, packed products unavoidably being dropped or accidentally impacted with hard substance. To prevent further damages in advance, this tester is designed to test and find out the ultimate solution for the package products with a purpose to reduce loss

during transportation. Compared with our previous version of single arm design, this twin-arm type is easier and more convenient to use.


Technical parameters

 Drop Height(mm)
 400-1500
 Max weight for test sample(kg)
 60
 Max dimension for test sample(mm)
 1400×1000×800
 Dimension for impact panel(mm)
 1400×1200
 Dimension for hold arm mm)
 700 X 350
 Horse power
 raise a third P, manual adjustable wide
 Dimension for test machine (mm)
 1400×1200×2200
 Net weight(kg)
 500
 Standard
 ISO22488-1972(E)
