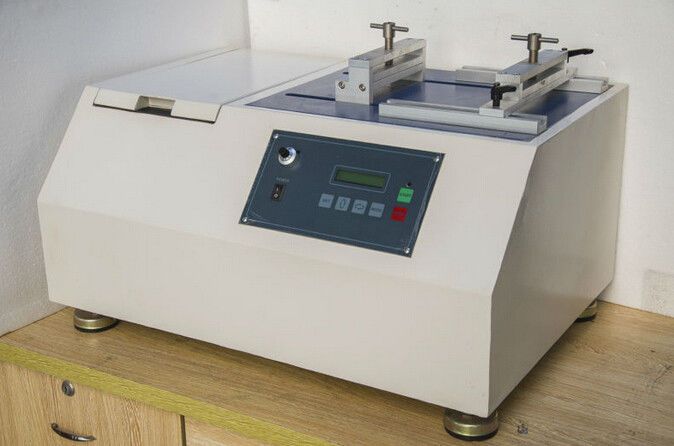

SL-LC61 Elastic Tape Fatigue Testing Machine

Product Model : SL-LC61
The instrument is designed for measure the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.
Detailed description

Elastic Tape Fatigue Testing Machine


Use

The instrument is designed for measure the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.



Purpose

The instrument is designed for measuring the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.

Principle
Using ecceantric wheel to conduct repeating movement that stretches the elastic material to the maximum extension. Periodically, check and inspect the condition of material. Stop the test when the specimen is suffered severe abrasion more than the expectation, or until the counter reaches a set value.



Technical parameters

 Speed  65+/- 5 rpm
 Stroke of movable grip  0~200 mm
 Grip width  140mm
 Timer  LCD Display 0~999,999
 Dimension (approx.)W*D*H  65 x 44 x 41cm
 Standards  SATRA TM103
