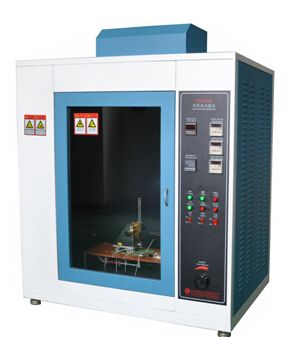

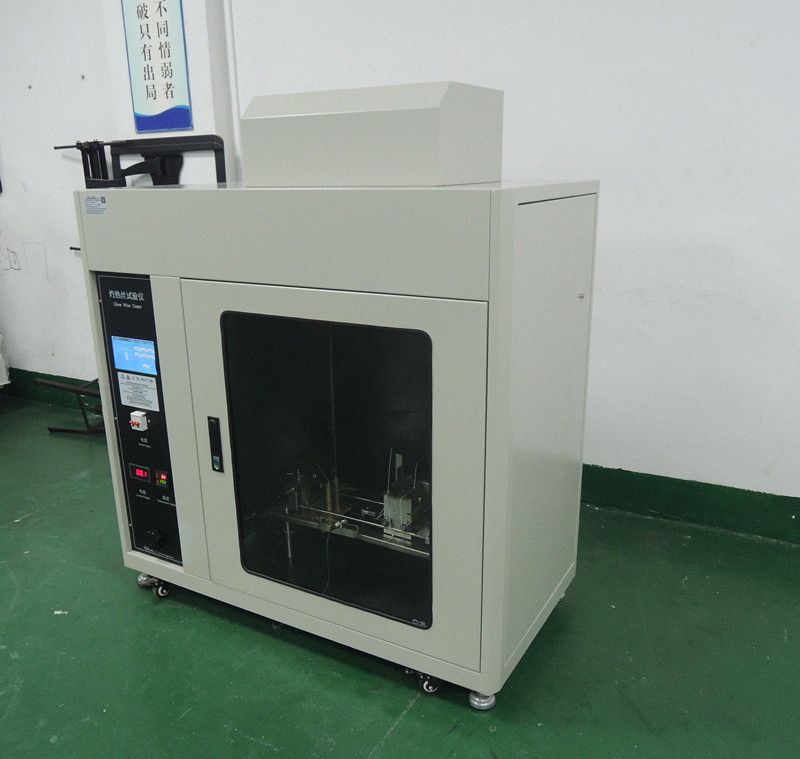

SL-SE04 Glow Wire Test Chamber

Product Model : SL-SE04
The Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.
Detailed description
Glow Wire Test Chamber



Product Introduction

• The Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.
• The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire.  The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.
• A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature.  The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

Technical parameters

 Glow wire  diameter  4mm±0.04mmNi/Cr(80/20)
 Temperature range   500 ~ 750℃±10℃;750 ~ 960℃±15℃
 Thermocouple diameter   0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40~ 1100°C
 Searing Time  30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)
 Light-off Time  0-999.9 s ± 0.1 s, automatic recording, manual timeout
 Fire out time  0-999.9 s ± 0.1 s, automatic recording, manual timeout
 Ironing into depth   7mm ± 0.5 mm
 Sample pressure  1N ± 0.2 N
 Test speed  18±3mm/s
 Test background  black background
 Test process automatic control  independent convulsions
 Chamber  ≥0.5m
 Control Using single chip microcomputer  + touch screen control
 Power Supply   AC 220V,50Hz

Standards

IEC60695 - 2 - 10 / 11 / 12 / 13、IEC60884-1、IEC60335-1、VDE0620
