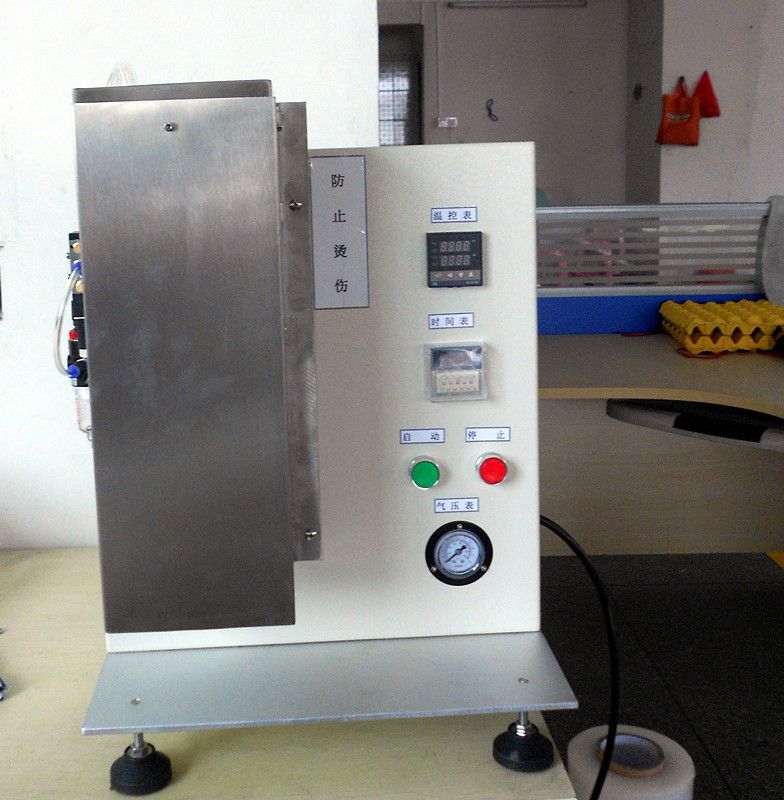

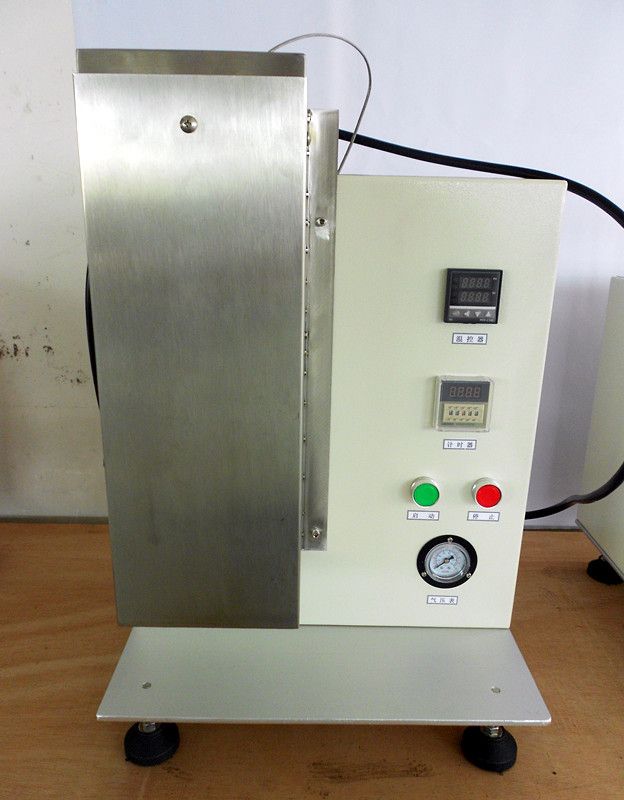

SL-SF03 Lens Flame Retardant Testing Machine
SL-SF03 Lens Flame Retardant Testing Machine
SL-SF03 Lens Flame Retardant Testing Machine

SL-SF03 Lens Flame Retardant Testing Machine

Product Model : SL-SF03
To determine whether the material has the required flame retardant properties to ensure the safety of users.
Detailed description

Lens Flame Retardant Testing Machine



Purpose

To determine whether the material has the required flame retardant properties to ensure the safety of users.



Lens Flame Retardant Testing Machine meets the standard: QB 2506-2001



Test instrument requirements

Can heat the regular cylindrical steel bar (φ6 * 300mm) resistance

Flammability tester with adjustable maximum temperature of 800 ° C, equipped with pneumatic device

Automatically raise and lower the heating rod to prevent the tester from touching the heating rod.



Testing method

A. Determine the test location (different materials should be tested separately);

B. Place the test sample

C. Start the instrument and put down the heating rod when the temperature of the heating rod rises to 650 degrees Celsius.

The test sample is contacted for 5 seconds, and then the heating rod is removed;

D. Observe whether the tested part of the sample continues to burn.



Technical parameters

 Thermocouple  φ6*300mm
 Automatic pressure control
 Microelectronic automatic timing
 Size  35 × 40 × 45 CM (length × width × height)
 Weight  25 Kg
 Power  AC220V 50Hz parameters
