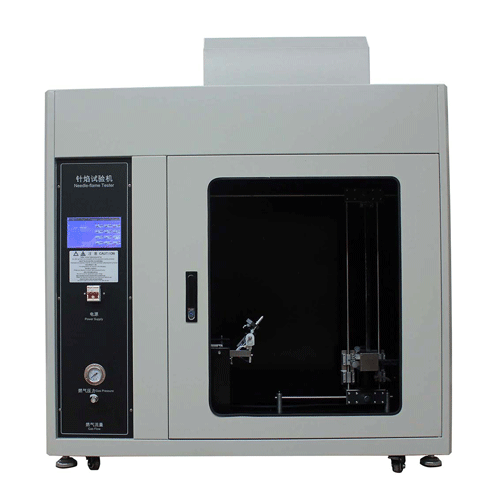

SL-SE03 Needle Flame Test Chamber

Product Model : SL-SE03
Needle Flame Test Chamber is used to test the resistance of fire caused by an interior fault such as leakage current in cable & wire
Detailed description

Needle Flame Test Chamber

Needle Flame Test Chamber is used to test the resistance of fire caused by an interior fault such as leakage current in cable & wire and the like. It meets the requirements of Chinese GB4706.1, GB5169.5, and IEC60695-2-2 and IEC61347-1 standards.
Application
Electrician & electron product
Components and accessories of household appliances
Features
* All stainless steel and brass constructions.
* Burner can be ignited automatically.
* Temperature and test time display by digital meters.
* A big window in the door makes your viewing more convenient.

Technical parameter

 Power source
 Depending on country/region of installation
 The interior capacity
 0.5 m3
 Inside diameter of burner
 0.5 +- 0.1 mm
 Outside diameter of burner
 Less than 0.9mm
 Length of burner
 No less than 35mm
 Flame height
 12 +-1 mm(adjustable)
 Flame period
 0~99m99s
 Temperature rise period
 23.5s+-1.0s(from 100+-20C to 700+-30C)
 Gas
 Butane (at least 95.0 percent pure, provided by clients)
 Exterior dimensions
 1200× 1100× 1400 mm(W× D× H)
 Weight
 105KG

Testing Standards

IEC884-1, GB2099.1, VDE, IEC335, GB4706.1, GB5169.5, UL1694
