Plane Mask One Drag Two Outer Ear Mask Machine

Plane Mask One Drag Two Outer Ear Mask Machine

Production introduction

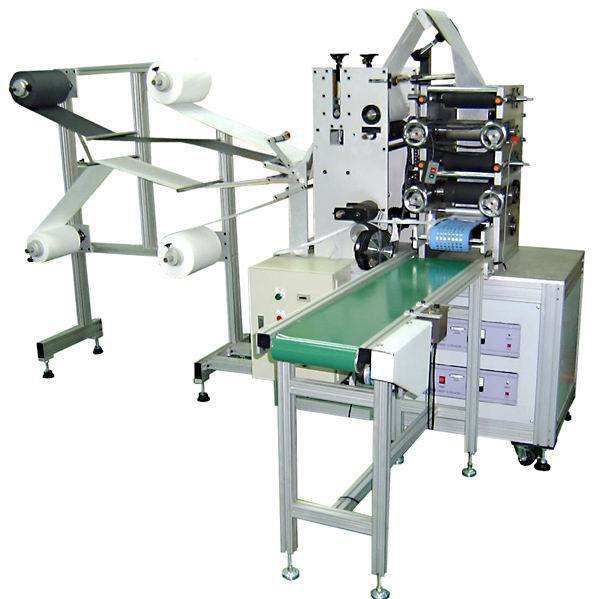

This machine is used for the automated production of multi-layer flat mask finished products. It can use 1 to 4 layers of PP spunbond non-woven activated carbon and filter material. The finished products are all automated in one line, plus two ear band spot welders, which can produce outer ear masks.

Features
The main body adopts high-precision servo motor, which has fast speed, stable movement and high precision.
Adjustable level of feeding mechanism
The overall mechanism is highly versatile and quick to change products
The overall equipment adopts high rigid structure, which improves the overall stability of the equipment

Technical parameters

Vacuum: Equipped with vacuum pump, can be connected to customer vacuum source <-75KPa, 250L / min
Output: 100 pieces / min
Operating height: floor to table height: 850mm (height of assembly line and feet can be adjusted)
Power supply and power interface: single-phase AC220V / 50HZ / 6000W flat three-pin plug
Working pressure and interface: 0.5 ~ 0.7Mpa, dry air source φ12mm quick plug
Air consumption: 250 L / min

Dimensions: 6500mm × 3500 mm × 1950 mm
Environmental requirements: Clean room Class 10 or less

Work process

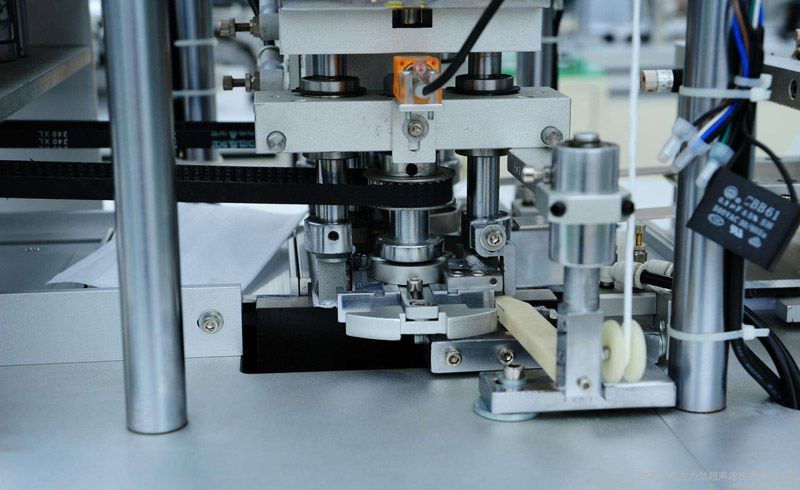

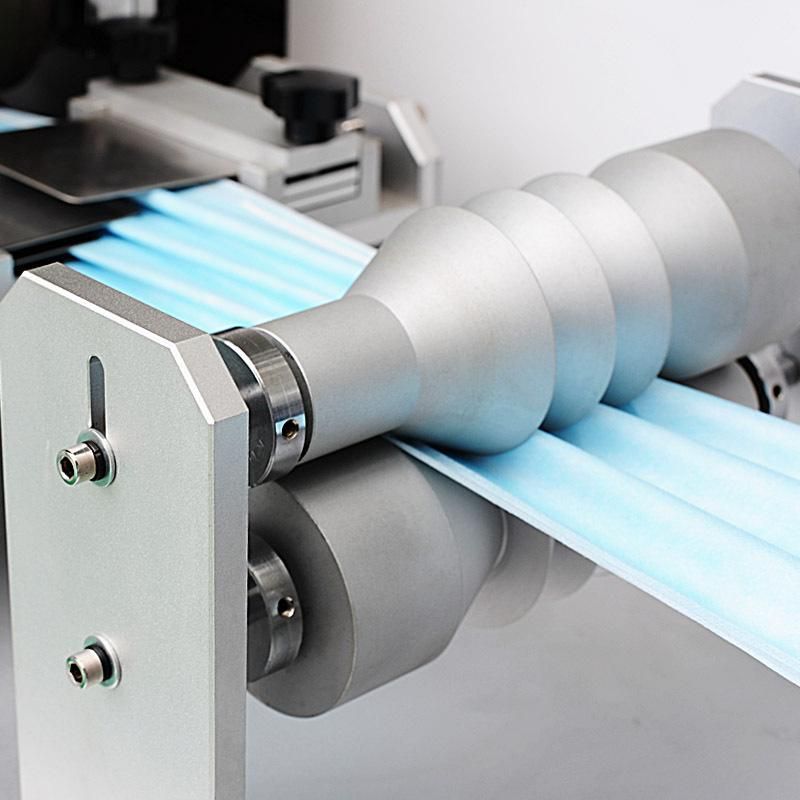

The PP spunbond non-woven fabric incoming roll and nose line roll are manually loaded into the material rack. At first, several layers of non-woven fabric stack and nose line are inserted into the conveying mechanism by artificial heads. The non-woven fabric and the nose line are driven forward by the conveying mechanism, and are folded, compressed, cut and shunted to the two ear band welding machines on the way. Weld the earband through the earmuff welding machine
