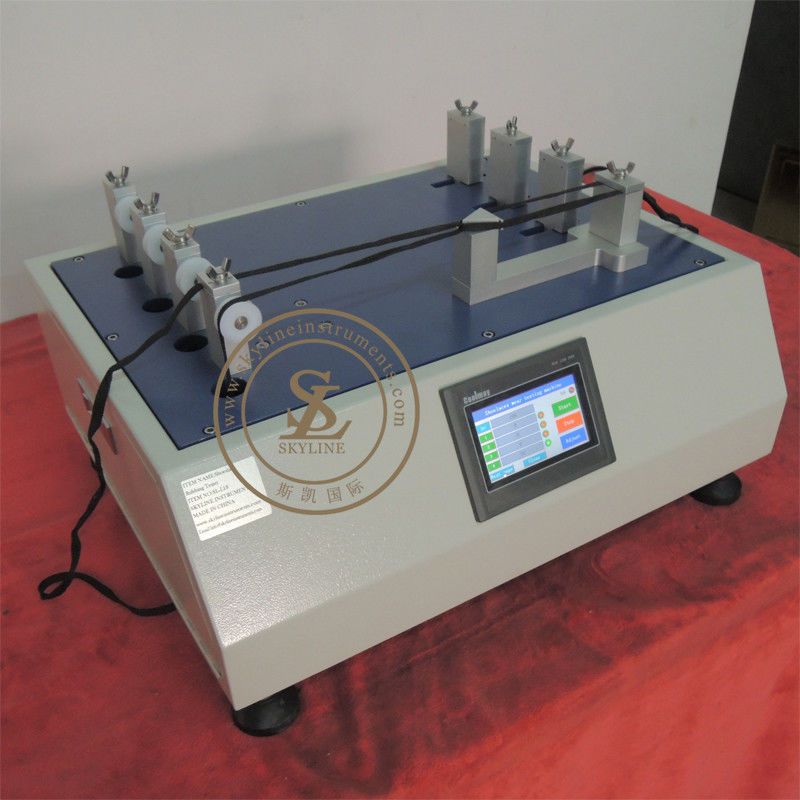

SL-L18 Shoelace Rubbing Resistant Tester

Product Model : SL-L18
Shoeslace Rubbing Tester is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.
Detailed description

SATRA PM154 Footwear Testing Equipment 4 Test Groups Shoeslace Abrasion Resistant Tester


 Application

This machine is used to test the rubbing resistance for shoelace of cotton, hemp, chemical fiber or other materials.



Product information

This machine is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.4 sets of specimens can be tested once.


Technical parameters

 Test position
 4 groups
 Control
 Touch-screen control, 0~999,999
 Min. Separation between movable and fixed fixtures
 280 ±50 mm
 Movable fixture stroke  35± 2 mm
 Test speed
 60 ± 6 cyles/min
 Profile board
 Angle 52.5degree; Length120 mm
 Stainless metal strip
 W: 25mm, L: 250mm
 Weight
 250 ± 3g
 Power supply
 1phase AC 220V 50/60HZ
 Dimensions ( L x W x H )
 66 x 58 x 42cm
 Weight
 50 kg
 Standards

 DIN 4843

 SATRA TM 154

 ISO 22774

 QB/T 2226

 GB/T 3903.36
