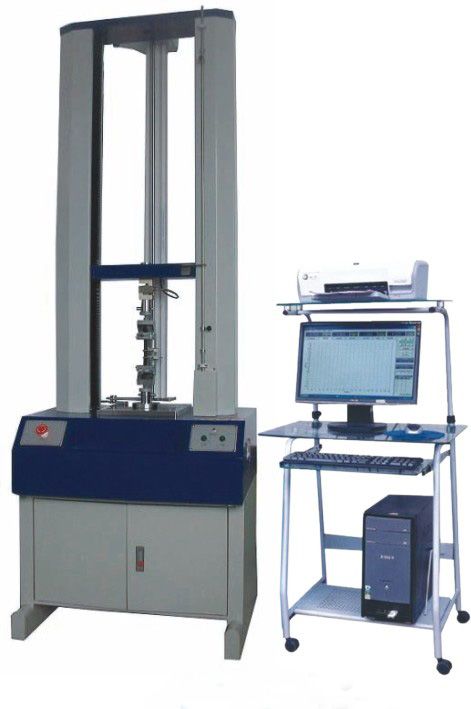

SL-T802 Servo Controlled Universal Tensile Testing Machine

Product Model : SL-T802
Universal Tensile Testing Machine it is the basic equipment for quality management and physical test
Detailed description

Servo Controlled Universal Tensile Testing Machine


Universal Tensile Tester Product Information

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested


Technical  parameters

Capacity 100, 200, 500, 1000, 2000kg, 5000kg, 10000kg
Display Computer display mode
Force Resolution 1/120, 000
Force Accuracy ≤ ± 0.5%
Stroke Resolution 0.005mm
Control Mode All computerized operation mode
Test Stroke 800mm
Test Width 550mm
Test Speed 0.01~500mm/min, can set by computer, with up & downfast adjustment button of grips
Force Unit Switch Kgf, N, Ibf, g, ton, Mpa
Stop Mode Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension 115*60*220cm(W× D× H)
Machine Drive Servo motor drive, synchronous wheel and precision ball screw drive
Power 1000W
Machine Weight Approx 800kg
Power Supply: 220V 50/60HZ 10A
Standard Device 1 set of grips, computer software, USB computer connection wire

Optional Personal computer


Standards

ASTM D638,ASTM D3039,ASTM D882,ISO 527


What equipment is used for testing strength?

A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. An earlier name for a tensile testing machine is a tensometer.
