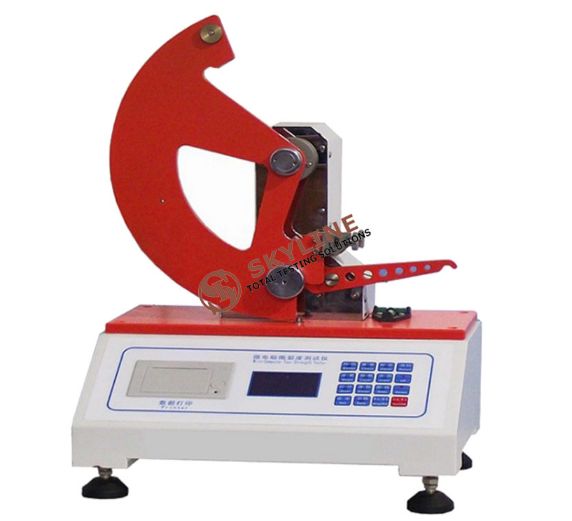

Tear Strength Tester Plastic Film Tear Tester
Tear Strength Tester Plastic Film Tear Tester
Tear Strength Tester Plastic Film Tear Tester

Tear Strength Tester Plastic Film Tear Tester

Product Model : SL-P13
The tear strength tester can mainly measure the tensile force, tear, peeling, adhesion of various materials... resistance properties. Print test date, time and The display value set by the display.
Detailed description

Tear Tester Paper Tear Strength Tester



Product information
The tear strength tester can mainly measure the tensile force, tear, peeling, adhesion of various materials... resistance properties. Print test date, time and
The display value set by the display. The tear strength tester can be equipped with a variety of fixtures and elongation test devices, or assembled according to customer needs.
Suitable for various food packaging, textile, rubber, plastic, synthetic leather and other industries, materials and products for tensile, peeling, tearing and other tests

Features
1. It consists of pendulum bracket, fan-shaped pendulum body, pendulum shaft, fixed fixture, movable fixture, weight gain weight, punching knife and pendulum release mechanism;
2, The pointer shows that the customer can get the test result through the pointer;
3, Easy to operate, easy to learn;
4, Mainly composed of load cell, transmitter, microprocessor, load-driven machinery, etc., high test accuracy

Standard
ASTM D903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792,
CNS-11888, JIS K6854, PSTC-7


Technical Parameters
Measuring range: 10mN ~ 16000mN
Resolution: 0.1mN
Accuracy: ±1.0%
Tear arm: 104 mm ±1 mm
Initial tear angle: 27.5 ° ± 0.5 °
Distance between the paper holders: 2.8 mm ±0.3mm
Sample cut length: 20 mm ± 0.5 mm
Tearing distance: 43±0.5mm
Paper size: 25*15mm
Fixture: pneumatic clamp
Man-machine interface: 3.2in LCD display, real-time display test data
Printout: Thermal Printer
Working environment temperature: (0~35) °C, humidity <85%
Dimensions: 510*400*365mm
Working environment: temperature (20 ± 10) ° C, humidity <85%
Power supply: AC220V 50Hz
