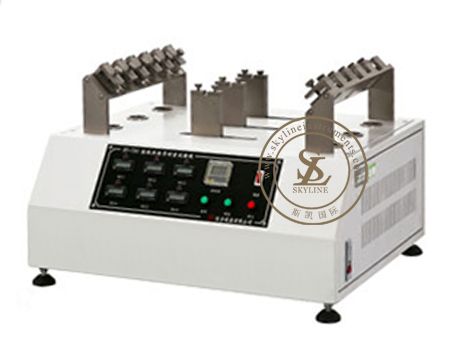

SL-L20 Shoe Lace-Eyelets Abrasion Tester

Product Model : SL-L20
It is designed for determining the resistance of all shoelaces and eyelets to abrasion.
Detailed description

Shoe Lace-Eyelets Abrasion Tester


Product Information

This machine is designed for determining the resistance of all shoelaces and eyelets to abrasion. The shoelace passes through the eyelet at a specified angle, and then shoelace moves up and down repeatedly under a standard load. 6 sets of specimens can be tested once.


Technical parameters

 Testing group  6 groups
 Stroke  76±2 mm
 Speed  100±5 timer/min
 Timer LCD display  0~999,999
 Beaverboard   25*25*3mm
 Eye-hole  4.5 mm
 Dimension  55 * 56 * 40 cm
 Power Supply   220V,3A

Testing Standard

SATRA TM93
