Vamp Flexing Machine
Vamp Flexing Machine

SL-L17 Vamp Flexing Machine

Product Model : SL-L17
Vamp Flexing Machine is used to assess the tendency of all type of shoe upper materials ,such as leather,poromeric,fabrics,plastic-coated fabrics and upholstery coverings to crack or break as a result of flexing in wear
Detailed description

Vamp Flexing Machine

Product information

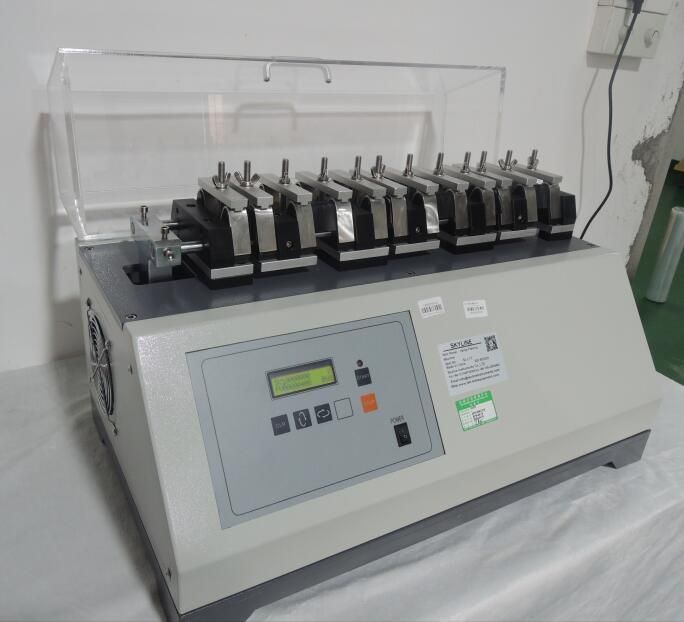

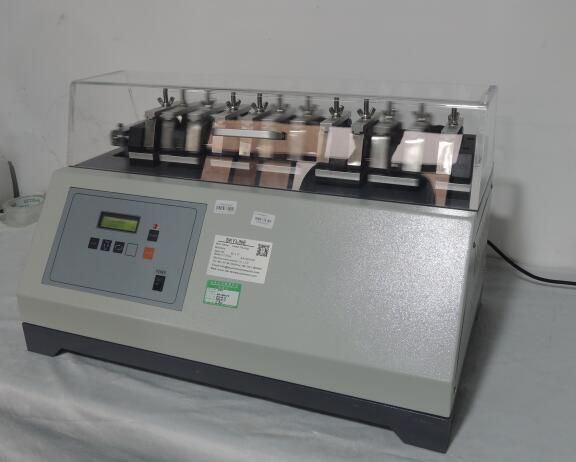

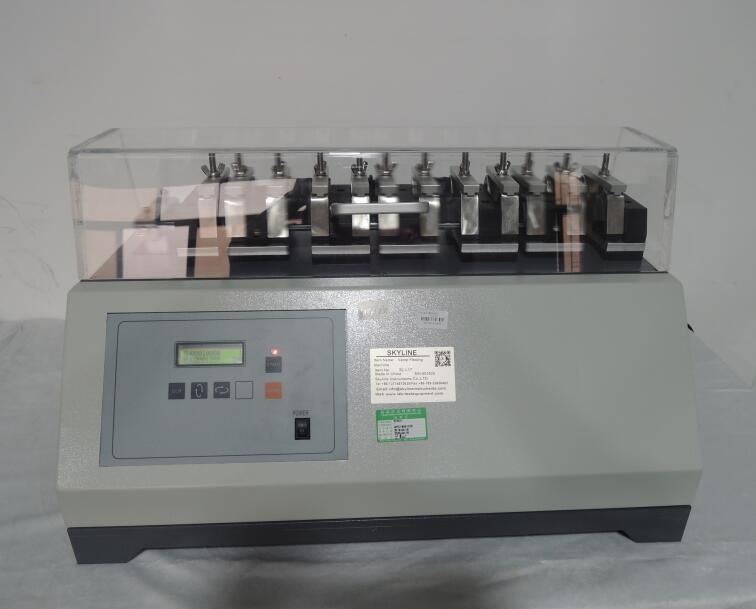

Upper Material Flexing Testing Machine is used to assess the tendency of all type of shoe upper materials ,such as leather,poromeric,fabrics,plastic-coated fabrics and upholstery coverings to crack or break as a result of flexing in wear,it allows 4 samples to tested simulataneously.counter with 6 bit LCD display
Automatic stop when reach the preset cycle times.easy installation and used.

 Specimen size
 70*45mm
 Bending angle
 22.5°
 Dimensions
 63*45*40cm
 Counter
 LCD
 Net weight
 60KG
 Power
 AC220V 200W

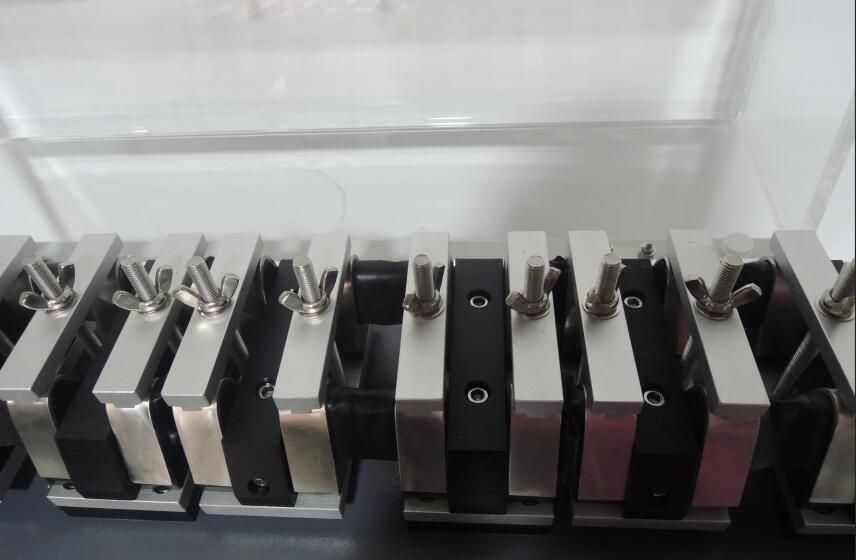

 Flexing grips
12
 Speed
 100±5cpm

Usage industry shoes, clothing, luggage handbag
Testing Standards
GB/T 3903.41, GB/T 20991, QB/T2714, ISO 17694, EN ISO 20344,EN ISO 5402,BS 3144,SATRA TM55
