SL-T01 Chair Armrest Test Machine

Product Introduction

This test machine use for progress an arm rest horizontal static test and durability & arm rest vertical test static and durability based on BIFMA X5.1 and BIFMA X5.4

Test Standards

GB/T 10357.3-2013 4.6&4.9; ANSI/BIFMA X5.1-2017 10.4,12,12,20; EN1728-2012; EN 581; ISO 7173-1989

Technical Parameters

Features

1. The controller adopts test software independently developed by the company, which can realize automatic shutdown of preset test times;

2. With emergency shutdown protection function, simple operation, reliable and stable operation;

3. With stop/power memory function, equipment short circuit protection function and other design, to ensure the safety of users.

Test Procedure:

BIFMA X 5.1 clause 20 (Arm Durability Test – Cyclic)

Test Procedure:

Simultaneously apply a force of 400 N (90 lbf.) to each arm initially at a 10 degrees ± 1 degree angle as shown in Figure 20b. The arm loading device must follow the arm (allow fore and aft, side-to-side and rotational movement) as it deflects or pivots. If using a test device similar to that shown in Figure 20b, the load application distance must initially be the length specified in the figure. Other methods of applying the load are acceptable if the force and angle applications are equivalent. The force shall be applied and removed for 60,000 cycles at a rate between 10 and 30 cycles per minute.

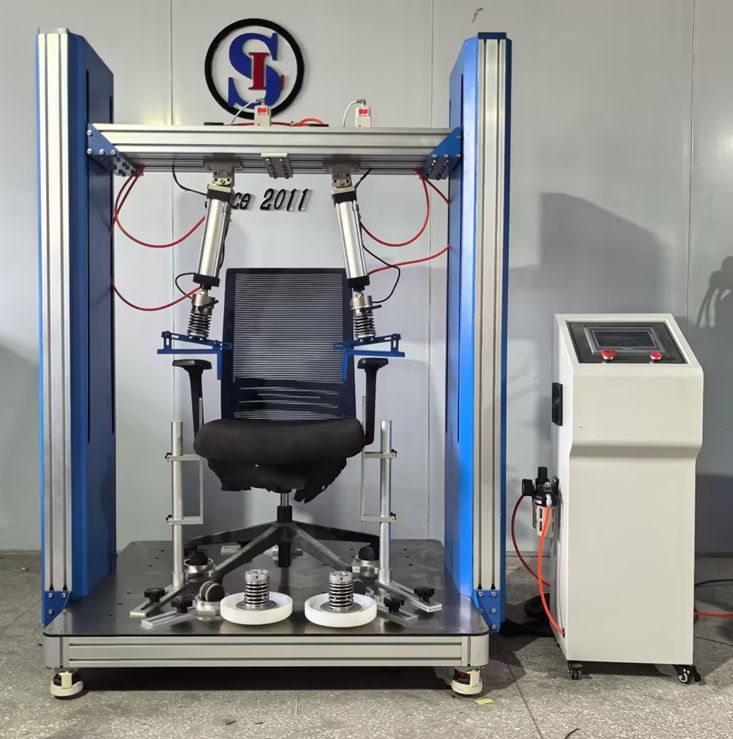

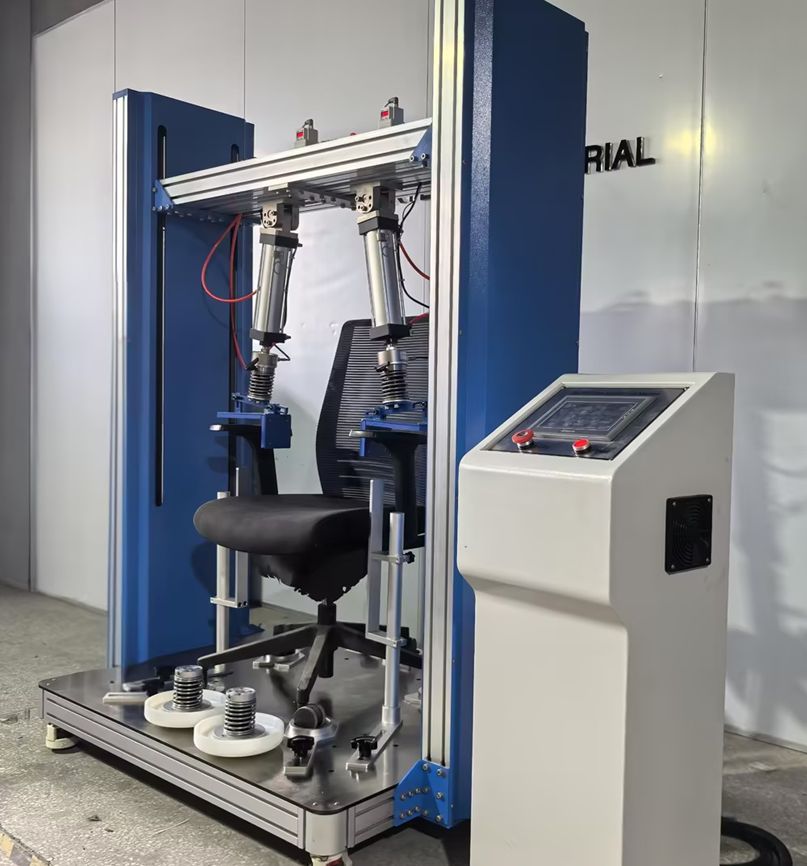

Test images:
