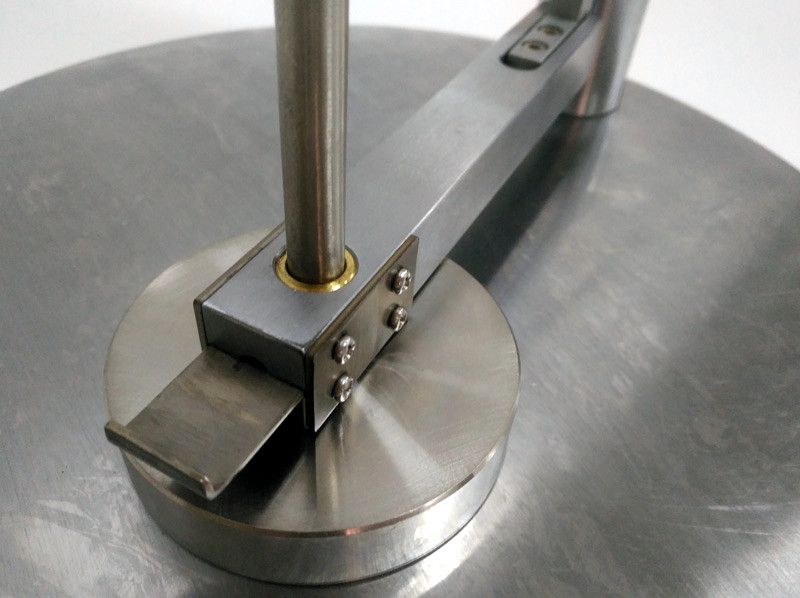

SL-S11 1kg Impact Tester

Product Model : SL-S11
To simulate the mechanical damage through an impact action likely to be performed by a child.
Detailed description

Stainless Steel EN71 -1 1kg Impact Tester Toys Testing Equipment


Product Information

To simulate the mechanical damage through an impact action likely to be performed by a child. Assessment of sharp edges, sharp points and small parts may be carried out after impact.With metric imperial unit height dictate rule.


Technical parameters

 Dimension  300(l) x300(w) x16(h) mm
 Adjust height  0-200mm
 Impact hammer diameter  80.00mm
 Impact hammer weight  1Kg
 Material  steel, surface chrome plating


Testing Standards
EN 71-1998 8.7 EN1400,ISO8124



Product Features
1. Inline height scale with horizontal scale window.
2. After the crossbar is set, it is locked by the set screw.
3. The touch button activates the impact.
4. With a male / English double height scale.
5. The impact hammer has a buckle locking function at the highest position.
6. Made of stainless steel, chrome-plated as a whole, no rust.



Special (Selling point)
1. Bearings, can make the test smoother, reduce friction and test results more accurately.
2. Round bar, made of stainless steel.
3. Price concessions
4. Independent carton packaging.
5. Stock

The packing details is as below :
Dimension: 53cm*32cm*17cm(L×W×H)
Weight:9.74kg



Note: Please note that the freight cost is based on door to door service by UPS.



Method of use and judgment result
1. Place the toy at the weakest position on the surface of a horizontal steel plate;
2. The metal block with a mass of 1±0.02kg and a diameter of 80±2mm is freely dropped from the height of 100±2mm onto the toy;
3. Repeat again.
4. Judgment: Punctuation, sharp edges, small objects or bursts are considered unqualified after the test.



Please review video of the EN71 Impact Tester operation as below link:

https://youtu.be/bck9AkU2DrI
