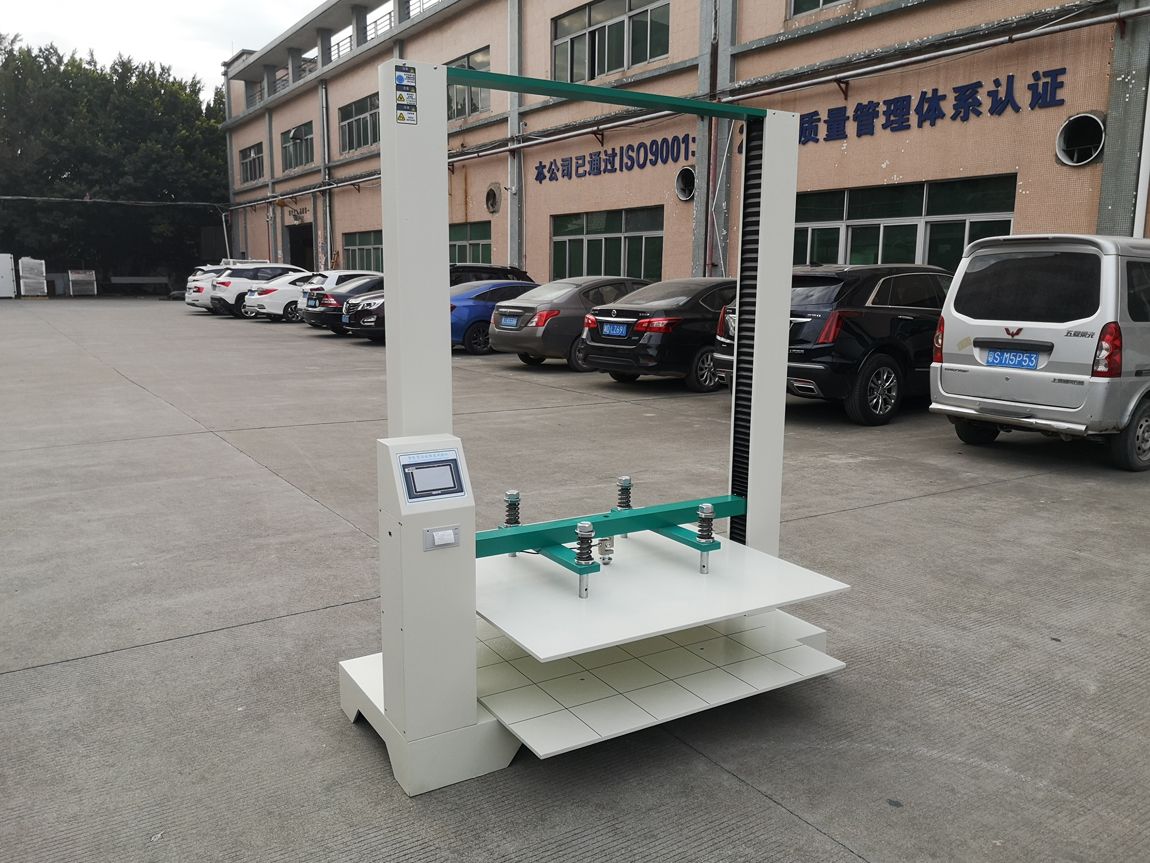

Intelligent Compressive Strength Testing Machine

Product Model : SL-E11B

It is the basic instrument for testing the compressive strength of corrugated boxes (i.e., packaging testing equipment), which is suitable for the compressive strength test, compliance test and stacking strength test of all kinds of corrugated boxes.

Inquire Now

Detailed description

Intelligent Compressive Strength Testing Machine

Product Description:

Product features:

1. After the test is completed, there is an automatic return function to automatically judge the crushing force and automatically save the test data.

2. Three settable speeds, all-Chinese LCD display interface, and various units to choose from.

3. Relevant data can be input and the compressive strength can be automatically converted, with the packaging stacking test function; The power and time can be set directly, and the machine will stop automatically after the test is completed.

4. Three working modes:

Strength test: It can measure the maximum pressure resistance of the box;

Fixed value test: the overall performance of the box can be tested according to the set pressure;

Stacking test: Stacking tests under different conditions such as 12 hours and 24 hours can be carried out according to the requirements of national standards.

Conform to the standard:

GB/T 4857.4-92 pressure test method for packaging and transportation packages

GB/T 4857.3-92 static load stacking test method for packaging and transportation packages

Technical parameters:

Capacity selection	0~2T (can be customized according to customer requirements)
Accurate grade	Level 1
Control mode	Microcomputer control (optional computer operating system)
Display mode	Electronic LCD display (or computer display)
Unit switching	kgf,gf ,N,kN,lbf
Unit stress switching	MPa,kPa,kgf/cm2,lbf/in2
Displacement unit	mm, cm, in
Force resolution	1/100000
Display resolution	0.001N
Machine schedule	1000mm
Pressure plate size	100010001000mm
Test speed	12.5mm/min
Software function	Chinese-English language exchange
Shutdown mode	Overload stop, emergency stop button, automatic stop for specimen damage, automatic stop for upper and lower limit setting.
Security equipment	Overload protection, limit element protection device
Power machine	AC variable frequency motor drive controller

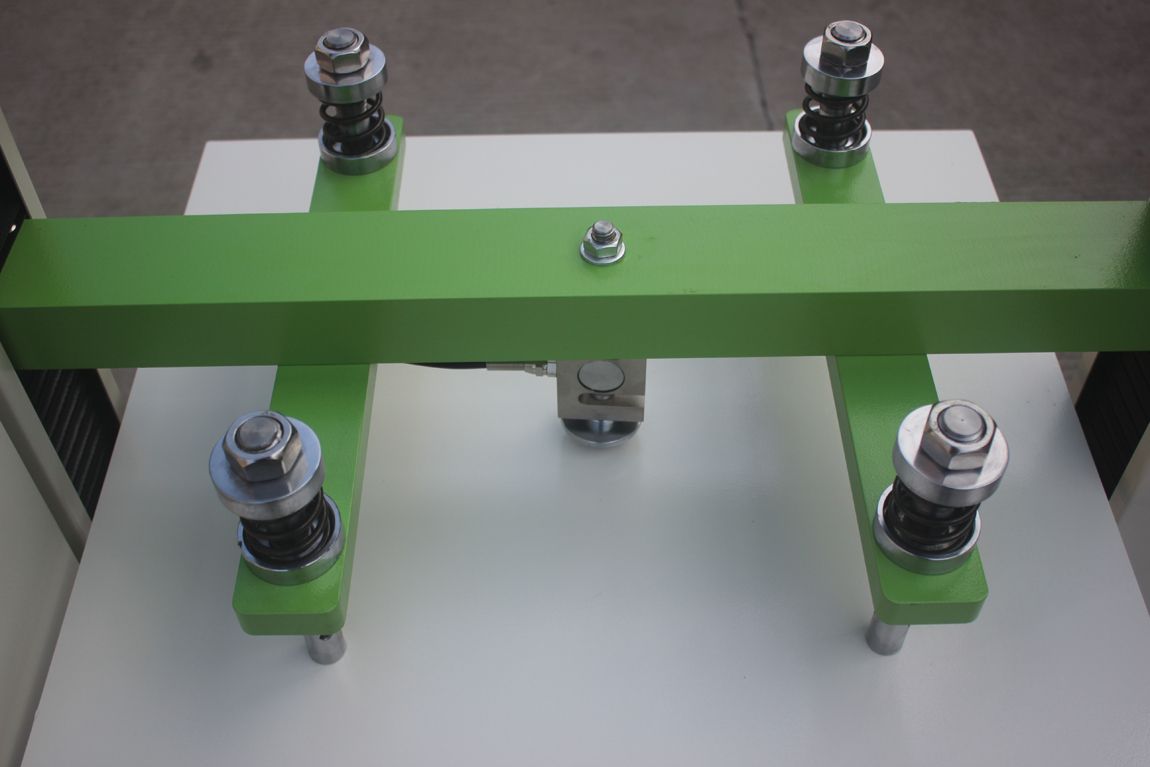

Mechanical system	High precision ball screw
Power Supply	AC220V/50HZ~60HZ 4A
Machine weight	About 350KG
Performance characteristics	You can set the percentage fracture value, automatically stop the machine, enter the menu to select 4 different speeds, and get 20 results. You can view the average value of all test results and single results.
