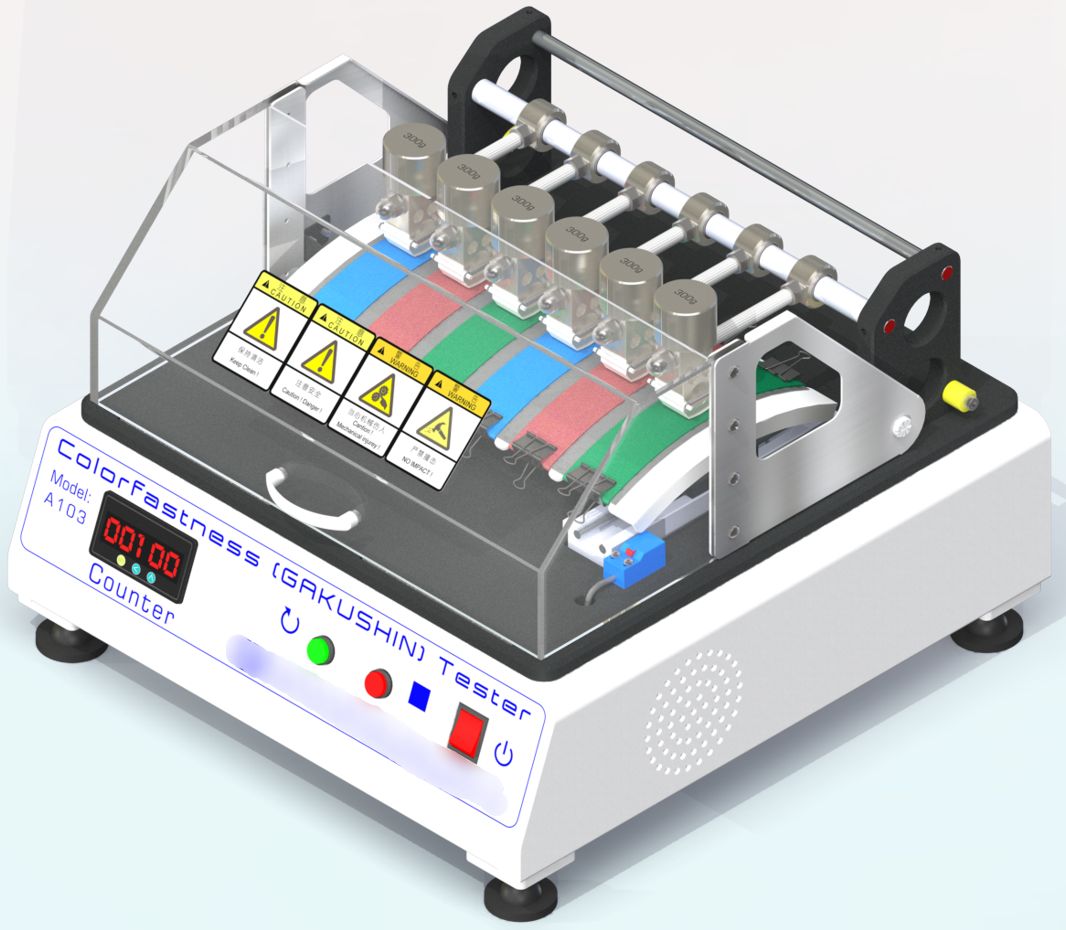

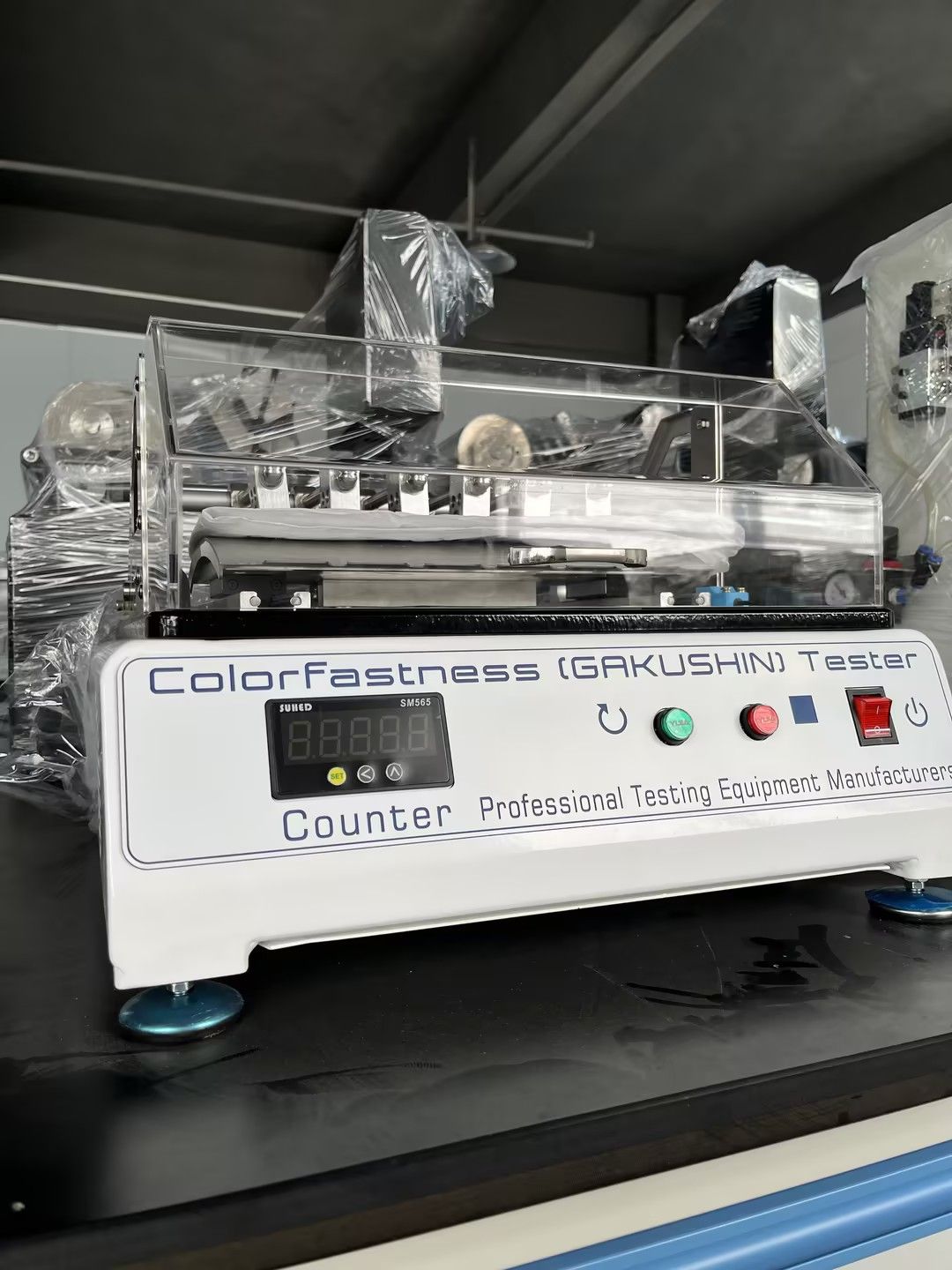

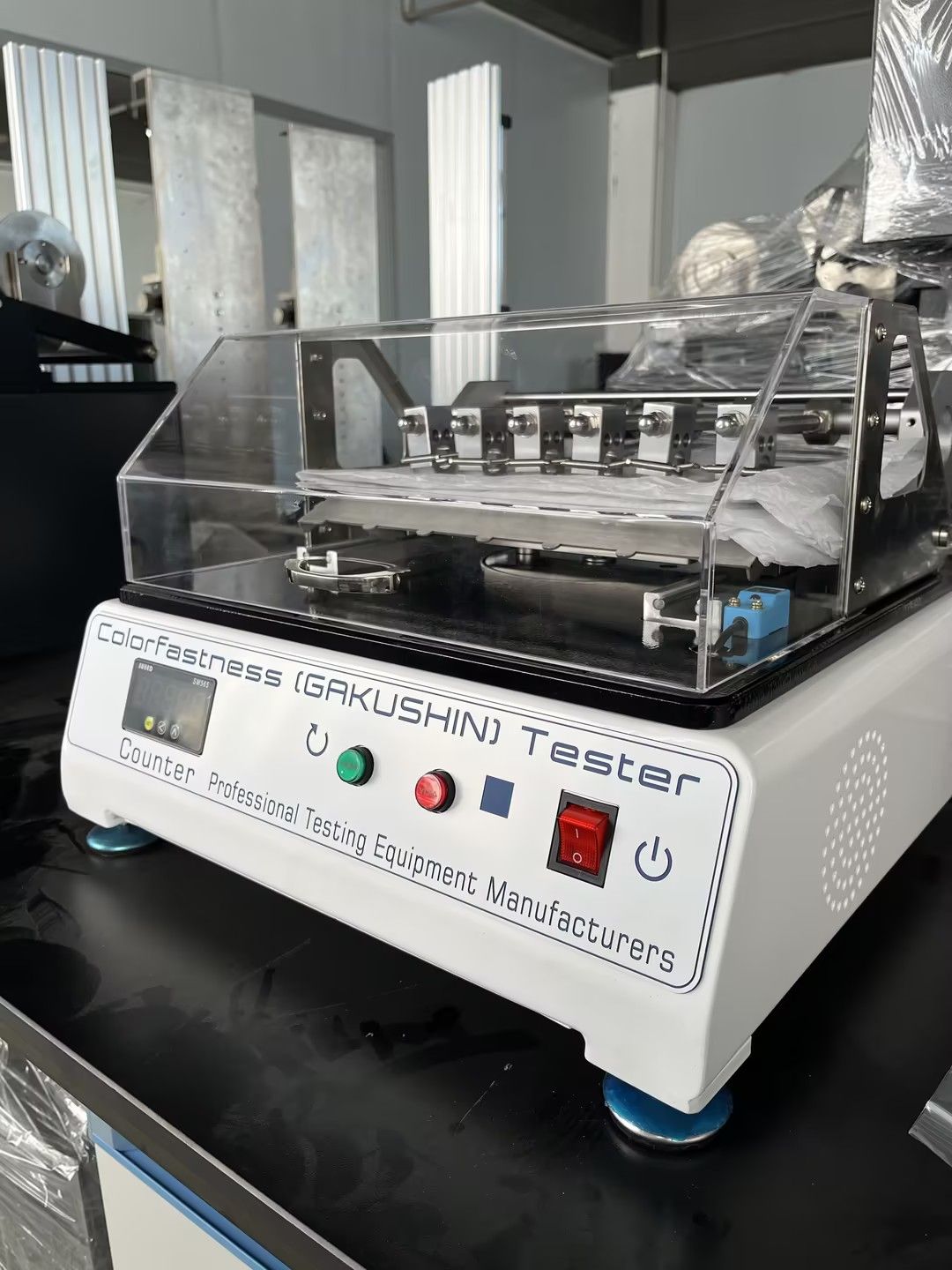

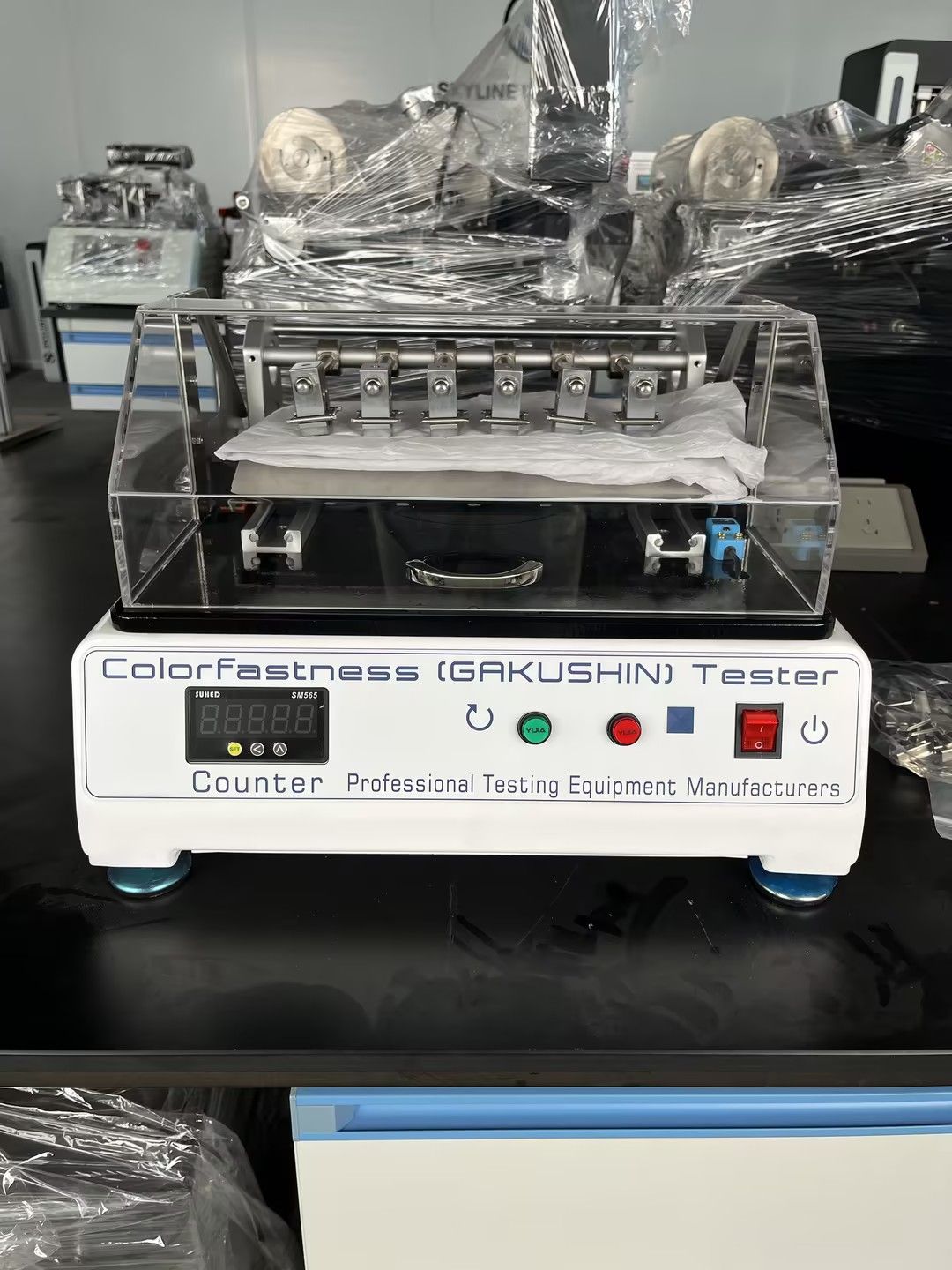

Gakushin Surface Friction Color Fastness Tester
JIS L0849 II Gakushin Surface Friction Color Fastness Tester
Purpose
This machine is suitable for testing the rubbing fastness of dyed textiles. It evaluates the rubbing fastness of dyed textiles according to the gray sample card.
Principle
Use the friction testing machine, according to the specified method, make the sample and the friction white cotton cloth friction each other, the friction white cotton color degree and color rating gray sample card comparison, so as to determine its color fastness.
Standard
This instrument is manufactured according to JIS L0849 II (test method for fastness to rubbing).
Parameters
|
Work station |
6 Work station (6 specimens can be tested each time) |
|
Friction head load |
2N(200g) |
|
The test speed |
30r/min |
|
The stroke of the friction table |
120mm |
|
Friction table |
Friction surface R200mm |
|
Friction hammer |
R45mm surface |
|
Distance between the friction arm shaft and the center of the friction head |
110mm |
|
The size of the sample |
220mmx30mm, and two pieces are parallel to the warp and zonal directions |
|
Rubbing white cotton cloth |
size 50mmx50mm |
|
Counter |
0 to 99999 times |
|
Dimension |
(WxDxH) 45x47x36cm |
|
Weight |
≈45Kg |
|
Power supply |
1∮ AC 220V 3A |
