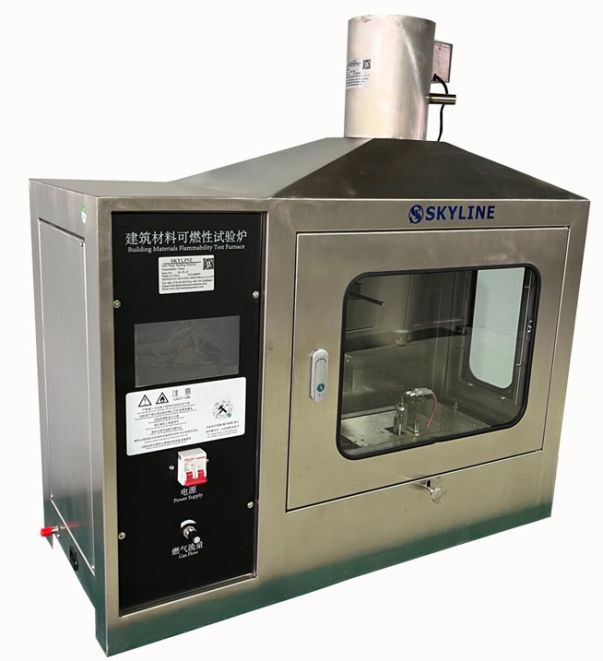

Single Flame Source Test Ignitability Tester EN ISO 11925-2/DIN 53438

Product Model : SL-FL15

It is in the normal combustion environment, with a small flame directly impacted the vertical specimen to determine the combustibility of the building products. The flammability test furnace for building materials is based on the principle of Kleinbrenner (Klein Brenner), which is directly impacted by a vertical flame. It is used to determine the combustion performance of B grade building materials (namely, the judgement of burning performance and flame retardant grade B of building materials).

Inquire Now

Detailed description

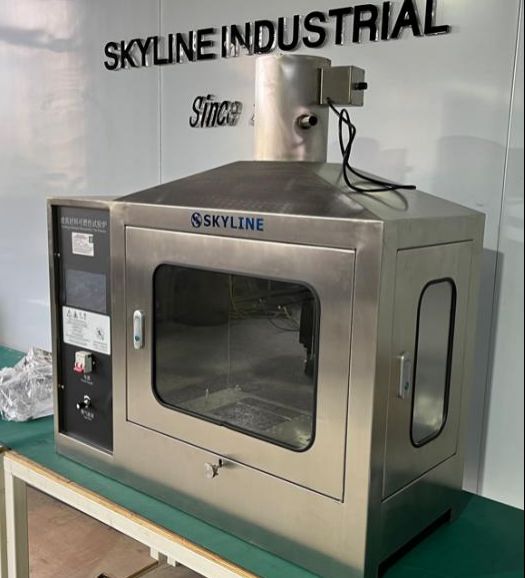

Building Material Flammability Test Furnace

Description

The building materials flammability test furnace is in the normal combustion environment, with a small flame directly impacted the vertical specimen to determine the combustibility of the building products. The flammability test furnace for building materials is based on the principle of Kleinbrenner (Klein Brenner), which is directly impacted by a vertical flame. It is used to determine the combustion performance of B grade building materials (namely, the judgement of burning performance and flame retardant grade B of building materials).

Standards

EN ISO 11925-2

Features

①The operation in line with ergonomic design,test all through the touch screen operation,high degree of automation.Otherwise, the previous test results can be stored and can access the previous test data.

②Controllable automatic lifting of servo motor drive pattern frame.

③The Bunsen Burner can be advanced and retreat and adjusted.

④1.5mm stainless steel plate box

⑤Double angle observation test of 2 heat-resistant tempered glass doors, double (with lock) is convenient and practical.

⑥High pressure automatic ignition and durable combustion.

⑦The point fire source can be automatically tilted by 45 degrees.

⑧The height of the flame is adjusted by the precision regulating valve.

Technical parameters

Stainless steel plate box	1.5mm
Bunsen burner	can be adjusted forward and backward
Diameter of burner	Φ 0.17mm burner with regulator; four ￠4mm air suction inlet
Flame length of Bunsen burner	20mm ± 2mm
Ignition source	can be automatically tilted by 45 degrees
The Bunsen burner applies a flame time	15s to the pattern
Flame height	Adjusted by precision adjustment valve
Sample rack	can move up and down and back and forth
Sample holders	2 pcs
Touch screen display	7 inches Effective display size 15.5cm in length and 8.6cm in width
Resolution	800 * 480
Communication interface	RS232, 3.3V CMOS or TTL, serial port mode
Storage capacity	1G
FPGA driver display	"zero" start time, can run after power on
Controller	adopts low energy consumption processor, and automatically enters energy saving mode
Gas source	>95% propane gas;(user should provide for themselves)
Gas pressure	10kpa~50kpa
Flue air velocity	0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame	0 ~ 99minutes99seconds
Time adjustment of afterflame	0 ~ 99minutes99seconds
Timer accuracy	≤1s/h
Ambient temperature	15 ℃ ～ 25 ℃;
Relative humidity	≤ 85%
Cabinet size	835 × 400 × 815mm
Power supply voltage and power	220 V, 50 Hz, 100 W
