A pair of glasses is like a pair of regenerated eyes for those of us with poor eyesight,
which brings great convenience to our lives. The glasses frame is an important part of
a pair of glasses. Once damaged, the entire glass will become useless. This will bring
us great inconvenience. The eyeglass frame durability tester is a test instrument that
prevents the lens from falling off due to slight impact and affects the quality of the
wearing effect. Having this instrument is important for producing high-quality glasses
effect.

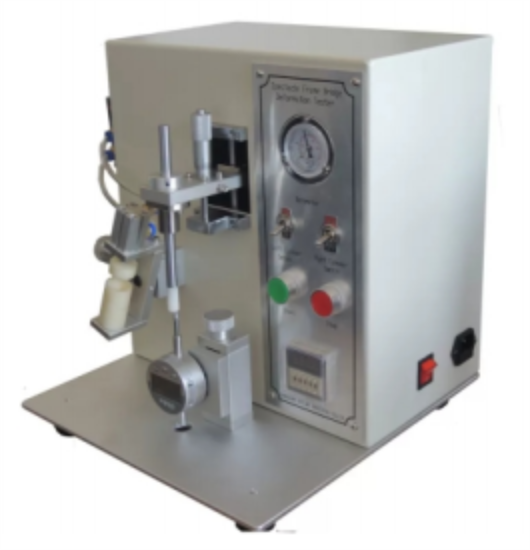

SL-SF02 Spectacle Frame Bridge Deformation Tester
Product Introduction
Test reason: The measurement frame has a certain lens retention ability, ensuring that
the frame can be safely worn for 2 years or more, preventing the lens from falling off
due to a slight impact, affecting the wearing effect.
Testing Standard
EN1836:2005, ISO12870:2004, GB/T14214:2003, etc.
Pneumatic Device
30 Pa
Maximum Pressure
5 N
Display mode
Electronic display and automatic timing device
Dimension
30 × 32 × 33 CM (length × width × height)
Weight
16KG
Power connection
AC220V, 50Hz, 5A
Test environment
temperature 23 ± 2 ℃, relative humidity 60,± 2%.
