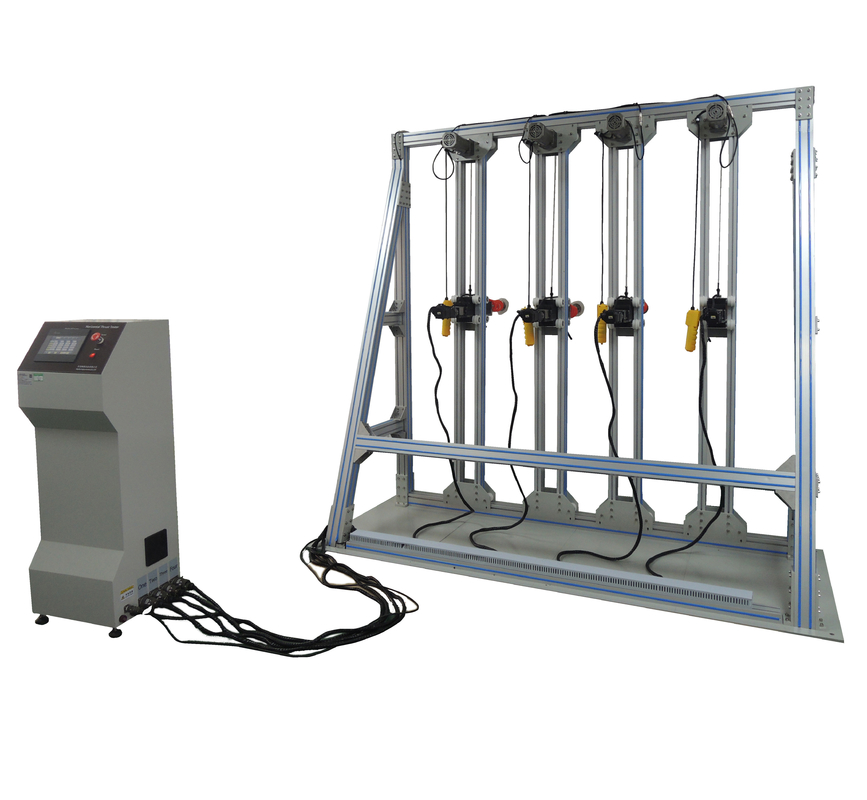

IS 9873-4 /ISO 8124-4 Horizontal Thrust Tester for Swings and Slide

Procedure

Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
surface.
For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not
prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with
the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging
direction. Where a swing element has multiple suspension points, distribute the load equally between the
points (using Table 3 as a guide). Forces on multiple suspension points shall be applied in the same direction
simultaneously.

Observe whether the toy tips over
