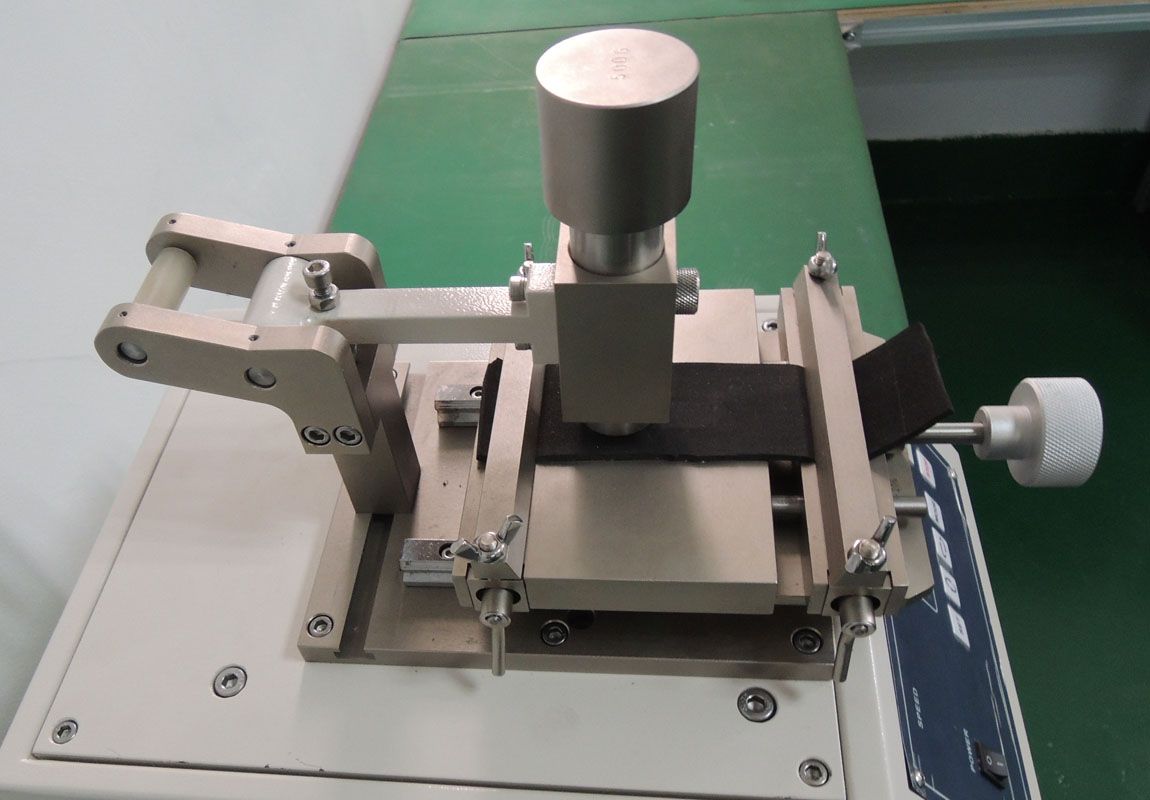

IULTCS Veslic Leather Abrasion Tester
IULTCS Veslic Leather Abrasion Tester
IULTCS Veslic Leather Abrasion Tester
IULTCS Veslic Leather Abrasion Tester
IULTCS Veslic Leather Abrasion Tester

IULTCS Veslic Leather Abrasion Tester

Product Model : SL-LC65
IULTCS & Veslic Leather Abrasion Tester is designed to carry out the rub fastness test on the surface of leather so as to determine the amount of marring of the leather surface or finish and the amount of color transfer to the rubbing pad.
Detailed description

SATRA Leather Testing Equipment PM 173 IULTCS Veslic Leather Abrasion Tester



Product information

IULTCS & Veslic Leather Abrasion Tester is designed to carry out the rub fastness test on the surface of leather so as to determine the amount of marring of the leather surface or finish and the amount of color transfer to the rubbing pad.



Application

This machine is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry rubbing test and wet rubbing test.


Technical parameters

 Position  1
 Area of testing head  15mm x 15mm
 Movement speed  40 ± 2 times / min
 Rubbing stroke  35 ± 2 mm
 Rubbing finger mass  500g
 Additional weight mass  500g
 Fixtures distance  80mm
 Sample size  120x20mm
 Tension extension range of sample  0 ~ 20%
 Power supply  1phase AC 220V 50/60HZ
 Dimensions (L x W x H)  490x340x550mm
 Weight  33kg
 Standards

 DIN 4843, ISO 11640, SATRA PM 173,

QB/T 2537, GB/T 20991 section 7.3,

EN ISO20344 section 7.3, AS/NZS 2210.2 section7.3
