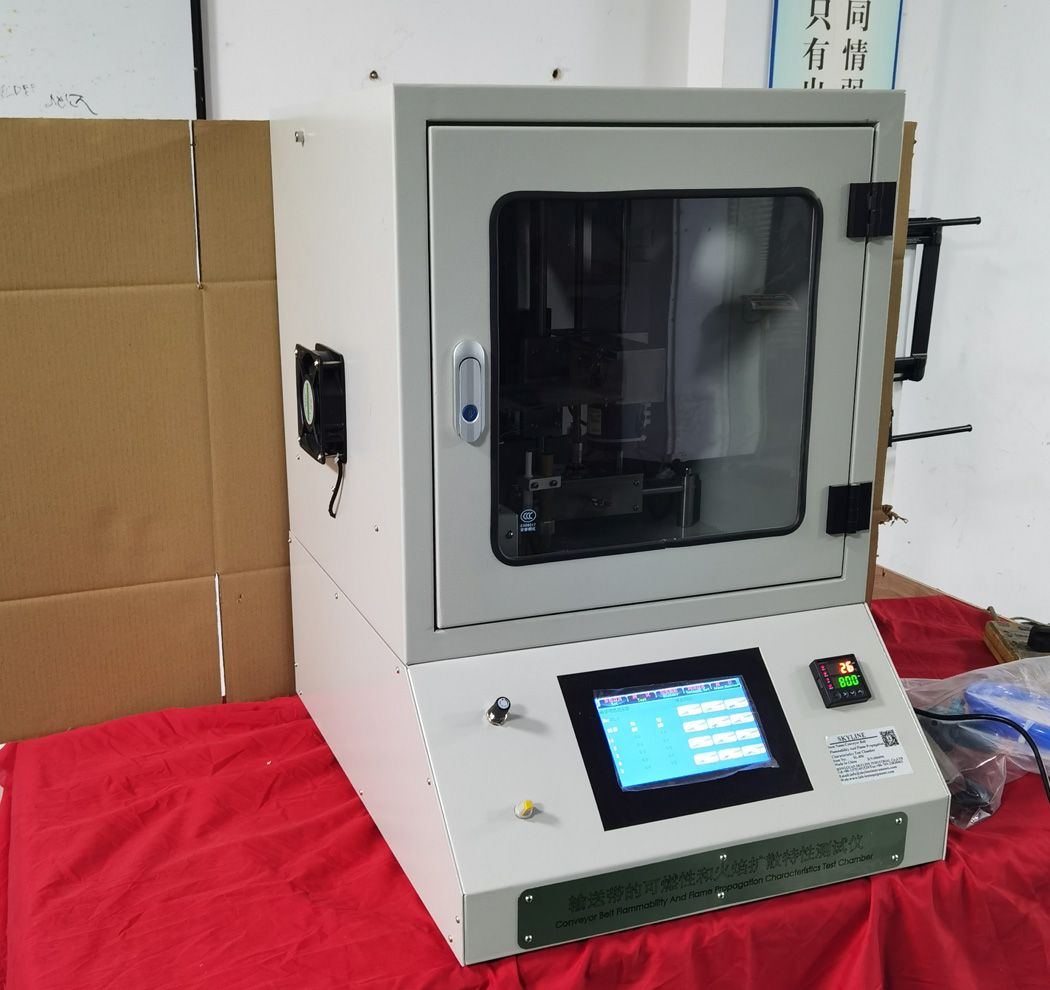

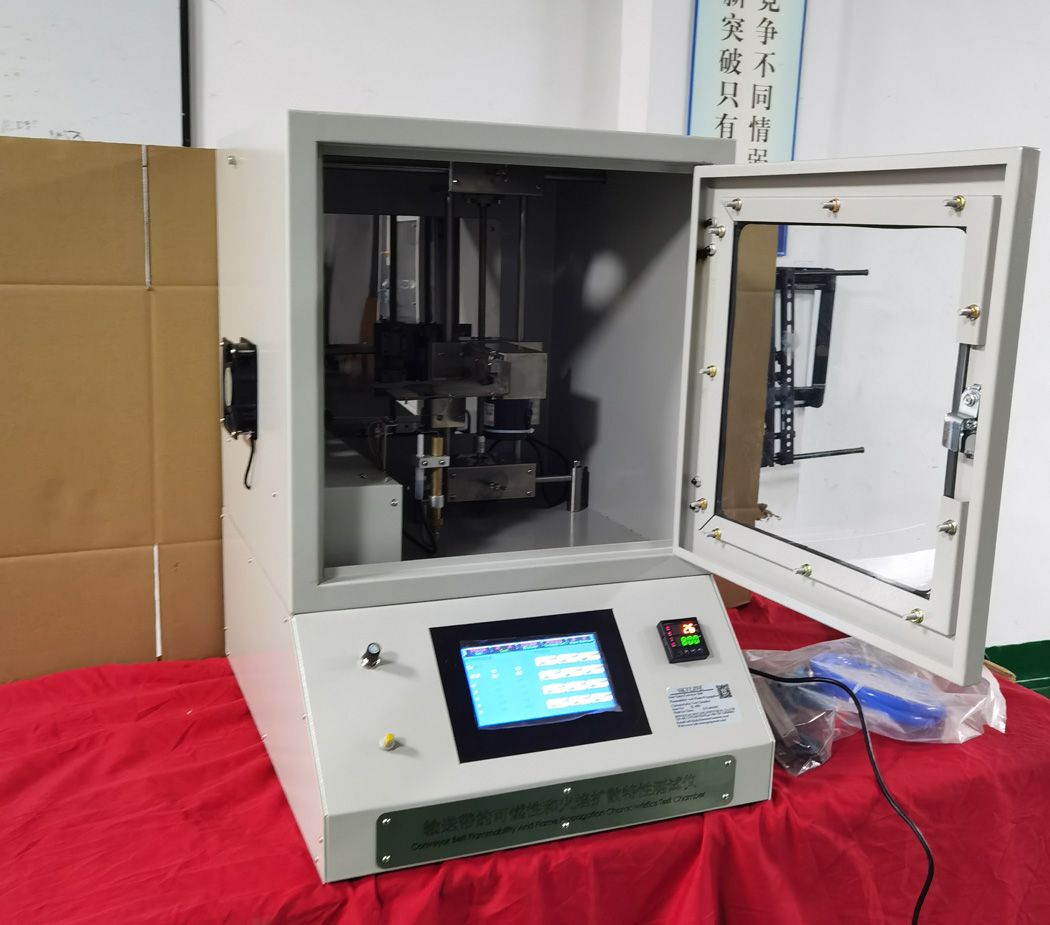

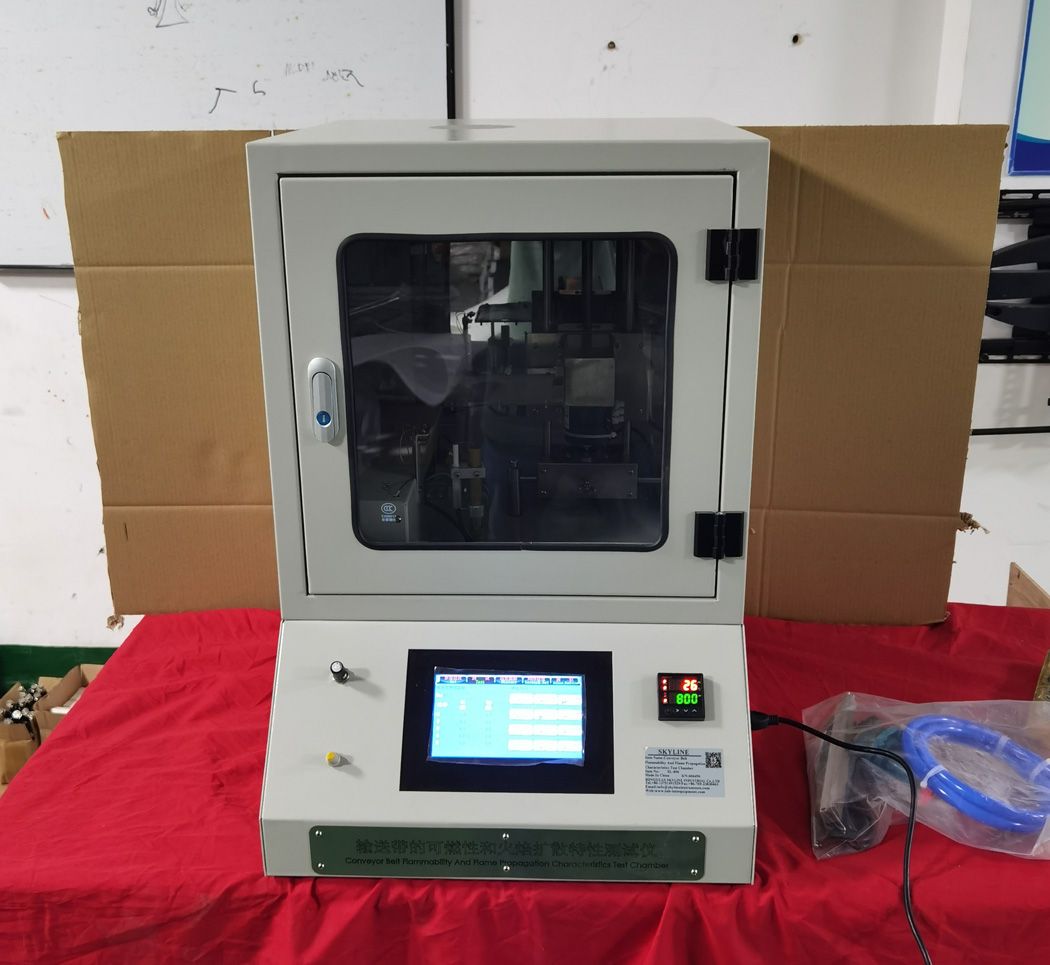

Conveyor Belt Flammability And Flame Propagation Characteristics Test Chamber

Conveyor Belt Flammability And Flame Propagation Characteristics Test Chamber

Product introducction

Test chamber for flammability and flame propagation characteristics of conveyor belts, suitable for propane burning hazard and flammability test of conveyor belts, lifting belts and other materials in research institutes and factories, propane lamp electric mobile positioning, electronic ignition, accumulation Time timing, in accordance with AS1334.10-1994 Standard "Test Methods for Conveyor Belts and Lifting Belts", Method 10: Requirements for the Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts.

Product Features

1) One-button operation, simpler;

2) Intelligent and humanized operation;

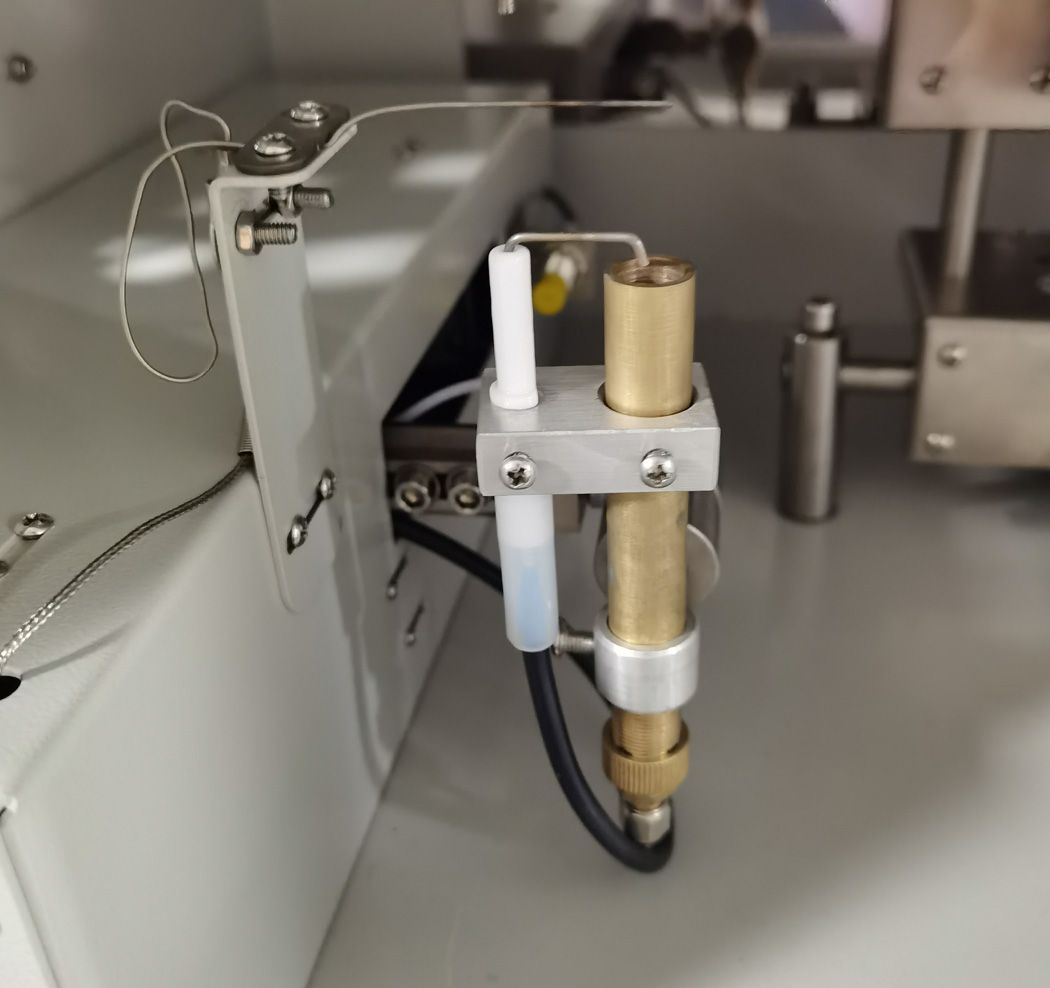

3) Ignition method: automatic high-pressure ignition is adopted;

4) Using PLC+touch screen control mode;

5) Easy and fast operation.

Application

This testing machine is suitable for measuring the flammability and flame propagation characteristics of horizontal conveyor belt samples.

For a given period of time, the end of the horizontally oriented conveyor belt sample is subjected to the flame from the designated gas burner, and the duration of removing the burner flame is measured. After the flame disappears, a gas flow passes through the sample to measure the afterglow duration.

In general, these test results themselves do not indicate the fire hazard of materials or products under actual fire conditions. Therefore, without considering other supporting information, they should not be used for fire hazard assessment.

Application of test results This test can be used to determine the flammability and flame propagation characteristics of conveyor belt materials. However, it must be emphasized that this test does not indicate that the materials actually used present a fire hazard. The use and modification of materials in the manufacturing process determines the fire hazard of the final product. This test can be used to specify the flammability and flame propagation of raw materials or conveyor belt product standards.

Technical parameters

1) Power supply :AC 220V,52Hz,100W；

2) Fan speed:can be adjustable (1.5±0.15)m/s；

3) Anemometer:Precision±0.1m/s;

4) Timer:Accuracy error＜1s/h；

5) Gas:≥95%Propane gas；

6) Flammability chamber material:304 stainless steel ；

7) Chamber dimension :L×W×H:500mm×500mm×500mm；

8) Complies with AS1334.10-1994 Standard
