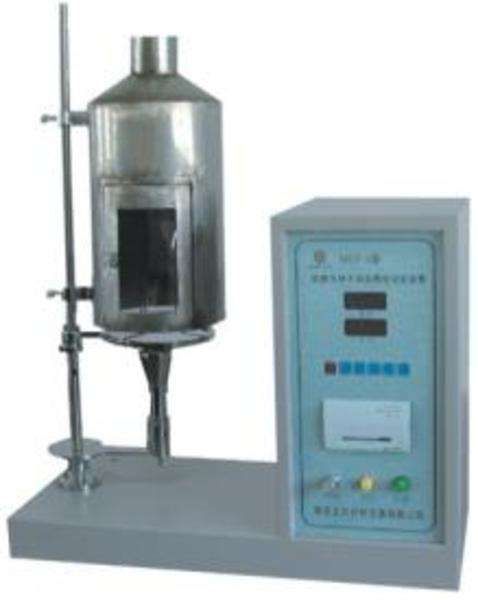

Wood Raft Flame Retardant Wood Burning Test Device

Wood Raft Flame Retardant Wood Burning Test Device

Application

It is suitable for testing the burning quality loss rate and flaming burning time of wood actually used in various production and engineering with a thickness of 20mm or more under the specified combustion conditions.

Technical Parameters
This machine has automatic ignition, automatic timing, automatic reset function;
The burner consists of a 50mm diameter nozzle and regulating valve, switching valve
Thermocouple: Nickel-chromium-nickel-silicon armored thermocouple with outer diameter of 3mm, precision class II
Gas flow meter: flow range (0.025-0.25) m3/h
Balance: Sense 0.1g
Digital timer: 0-24 min, step difference 1s
The burner ignites the sample for 3 min
Flame height is about 250mm, temperature (310±10) °C
